Gazebo Floor Calculator
Calculate materials for decking, pavers, or concrete slab floors.
Floor Dimensions
Material Choice
Total Floor Area
0 sq ft
Est. 0 Linear Ft Decking
Floor Plan Visualizer
Shape: Hexagon
Side Length
0'
Perimeter
0'
Apothem (Run)
0'
Alt Units
0 m²
Was this tool helpful?
Your feedback helps us build better tools.
What is a Gazebo Floor Calculator?
A Gazebo Floor Calculator is a tool for planning the base of your outdoor structure. Whether you are pouring a concrete slab or building a wood deck, determining the precise area of hexagons and octagons can be tricky. This calculator simplifies the geometry to give you accurate square footage and material estimates for decking boards, pavers, or concrete volume.
How to Plan Your Floor
3 Easy Steps
From shape to materials.
1
Select Shape
Choose your gazebo style: Hexagon, Octagon, or Rectangle.
2
Input Dimensions
Enter the diameter (corner to corner) or side length. This defines the total footprint.
3
Estimate Material
Choose between wood decking, pavers, or concrete to see exactly how much you need to order.
Floor Geometry
Area Formulas
Calculating the area of regular polygons requires specific constants derived from trigonometry.
Hexagon Area = $\frac{3\sqrt{3}}{2} \times s^2 \approx 2.598 \times s^2$
Octagon Area = $2(1+\sqrt{2}) \times s^2 \approx 4.828 \times s^2$
Rectangle = Length × Width
Linear Feet (Decking) = (Area × 12) / Board Width
Flooring Options

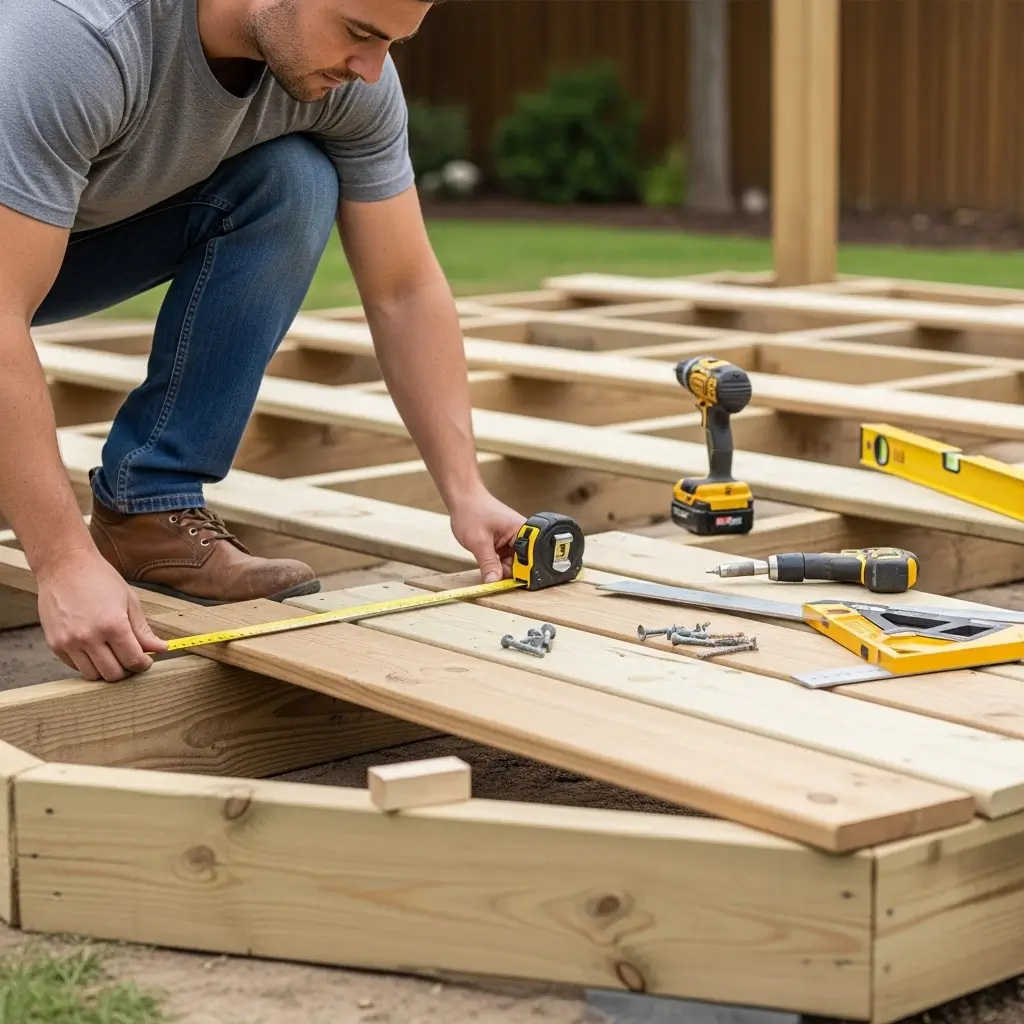

Wood Decking: Classic and warm. Requires a sub-frame of joists. Calculate linear feet of decking boards based on width (standard 5.5").
Concrete Slab: Durable and permanent. You'll need to calculate volume in cubic yards (Area × Depth).
Pavers: Flexible and stylish. Simply calculate total square footage and add a waste factor for cuts at the angled edges.
Related Calculators
Frequently Asked Questions
For hexagons and octagons, the diameter usually refers to the "long diagonal" or the distance from one corner post to the directly opposite corner post.
For rectangular decks, 5-10% is sufficient. For hexagonal or octagonal floors, angles require many cuts, so 15-20% waste is recommended to account for off-cuts.
A standard 4-inch thick slab is suitable for most residential gazebos. If you plan to install a heavy hot tub, consider 6 inches with reinforcement.
The apothem is the distance from the center of the gazebo to the flat edge of the floor (not the corner). This measurement helps with joist layout.
Yes. Composite decking is durable and low-maintenance. Just ensure your joist spacing meets the manufacturer's requirements (usually 12" to 16" O.C.).
This calculator estimates material based on total coverage. Standard decking gap (1/8" to 1/4") typically balances out with minor cutting waste, but adding the 5-10% waste factor covers this variance.
The calculator provides total square footage. Simply check the square footage per pallet or per paver from your supplier to determine the quantity needed.
This tool assumes a regular polygon (equal sides). For irregular shapes, it's best to divide the floor into triangles or rectangles, calculate their areas separately, and sum them up.
